Masonry and Foundation Bolts DIN529 China Manufacturer High Quality Good Price

Masonry and Foundation Bolts

Foundation Bolts, also known as Masonry Bolts, Anchor Bolts, Holding Down Bolts, Structural Bolts, Construction Bolts. Foundation Bolts include L-type Foundation Bolts, J-type Foundation Bolts, U-type Foundation Bolts, anchor claw-type Foundation Bolts, etc.

Foundation Bolts are mainly used for infrastructure construction. It is a screw rod used to fix various equipment. When installing the concrete infrastructure, one end of the Foundation Bolts is buried in the concrete for use.

Masonry and Foundation Bolt Details

SIZE: M8-M72

MATEAIL: Carbon Steel, Stainless Steel

STANDARD: DIN529

SURFACE TREATMENT: ZP, HDG, BLACK, Dacromet

CUSTOMIZED SUPPORT: YES

DIN 529 - Type A Masonry and Foundation Bolt Specifications

    Thread Size
     d
    M8
    M10
    M12
    M16
    M20
    M24
    M30
    M36
    M42
    M48
    M56
    M64
    M72×6



    a
    Nominal   Size
    24
    30
    36
    48
    60
    75
    95
    115
    135
    155
    180
    200
    240


    max
    27
    33
    39
    51
    63
    78
    98
    118
    138
    158
    183
    203
    243


    min
    21
    27
    33
    45
    57
    72
    92
    112
    132
    152
    177
    197
    237


    c
    Nominal   Size
    45
    55
    65
    85
    105
    125
    155
    190
    220
    250
    290
    335
    370


    max
    50
    60
    70
    90
    110
    130
    160
    195
    225
    255
    295
    340
    375


    min
    40
    50
    60
    80
    100
    120
    150
    185
    215
    245
    285
    330
    365


    g
    ≈
    30
    38
    45
    60
    75
    90
    115
    135
    155
    180
    210
    235
    260


    b
    min=nominal   size
    20
    25
    30
    40
    50
    60
    75
    90
    105
    120
    140
    160
    180


    max
    22.5
    28
    33.5
    44
    55
    66
    82
    98
    114
    130
    151
    172
    192


Thread Size d	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6
a	Nominal Size	24	30	36	48	60	75	95	115	135	155	180	200	240
max	27	33	39	51	63	78	98	118	138	158	183	203	243
min	21	27	33	45	57	72	92	112	132	152	177	197	237
c	Nominal Size	45	55	65	85	105	125	155	190	220	250	290	335	370
max	50	60	70	90	110	130	160	195	225	255	295	340	375
min	40	50	60	80	100	120	150	185	215	245	285	330	365
g	≈	30	38	45	60	75	90	115	135	155	180	210	235	260
b	min=nominal size	20	25	30	40	50	60	75	90	105	120	140	160	180
max	22.5	28	33.5	44	55	66	82	98	114	130	151	172	192

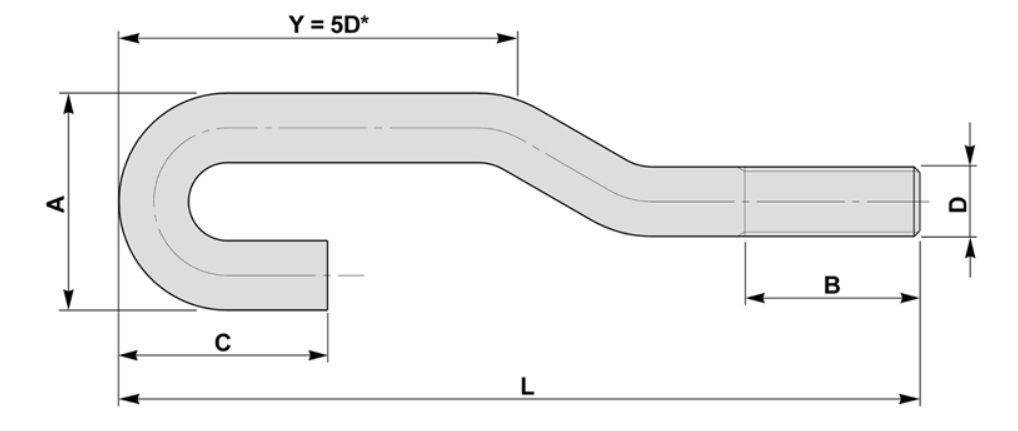

DIN 529 - Type B Masonry and Foundation Bolt Specifications

    Thread Size
     d
    M16
    M20
    M24
    M30
    M36
    M42
    M48
    M56
    M64
    M72×6



    a
    Nominal  Size
    48
    60
    75
    95
    115
    135
    155
    180
    200
    240


    max
    51
    63
    78
    98
    118
    138
    158
    183
    203
    243


    min
    45
    57
    72
    92
    112
    132
    152
    177
    197
    237


    g
    ≈
    45
    55
    70
    90
    110
    125
    140
    165
    185
    215


    b
    min=nominal size
    40
    50
    60
    75
    90
    105
    120
    140
    160
    180


    max
    44
    55
    66
    82
    98
    114
    130
    151
    172
    192


Thread Size d	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6
a	Nominal Size	48	60	75	95	115	135	155	180	200	240
max	51	63	78	98	118	138	158	183	203	243
min	45	57	72	92	112	132	152	177	197	237
g	≈	45	55	70	90	110	125	140	165	185	215
b	min=nominal size	40	50	60	75	90	105	120	140	160	180
max	44	55	66	82	98	114	130	151	172	192

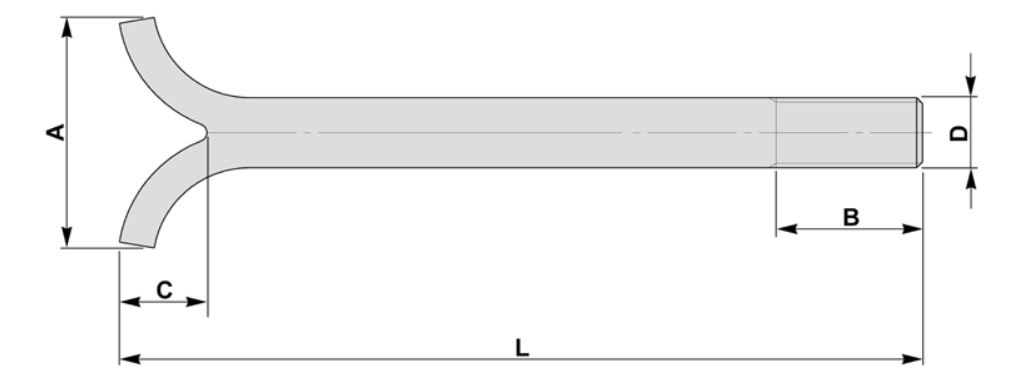

DIN 529 - Type C Masonry and Foundation Bolt Specifications

    Thread Size
     d
    M8
    M10
    M12
    M16
    M20
    M24
    M30
    M36
    M42
    M48
    M56
    M64
    M72×6



    a
    Nominal Size
    16
    20
    24
    32
    40
    48
    60
    72
    85
    98
    /
    /
    /


    max
    19
    23
    27
    35
    43
    51
    63
    75
    88
    101
    /
    /
    /


    min
    13
    17
    21
    29
    37
    45
    57
    69
    82
    95
    /
    /
    /


    c
    Nominal   Size
    12
    15
    18
    24
    30
    36
    45
    54
    63
    72
    84
    96
    110


    max
    17
    20
    23
    29
    35
    41
    50
    59
    68
    77
    89
    101
    115


    min
    7
    10
    13
    19
    25
    31
    40
    49
    58
    67
    79
    91
    105


    g
    ≈
    5
    7
    8
    11
    14
    18
    24
    30
    34
    40
    45
    50
    60


    b
    min=nominal  size
    20
    25
    30
    40
    50
    60
    75
    90
    105
    120
    140
    160
    180


    max
    22.5
    28
    33.5
    44
    55
    66
    82
    98
    114
    130
    151
    172
    192


Thread Size d	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6
a	Nominal Size	16	20	24	32	40	48	60	72	85	98	/	/	/
max	19	23	27	35	43	51	63	75	88	101	/	/	/
min	13	17	21	29	37	45	57	69	82	95	/	/	/
c	Nominal Size	12	15	18	24	30	36	45	54	63	72	84	96	110
max	17	20	23	29	35	41	50	59	68	77	89	101	115
min	7	10	13	19	25	31	40	49	58	67	79	91	105
g	≈	5	7	8	11	14	18	24	30	34	40	45	50	60
b	min=nominal size	20	25	30	40	50	60	75	90	105	120	140	160	180
max	22.5	28	33.5	44	55	66	82	98	114	130	151	172	192

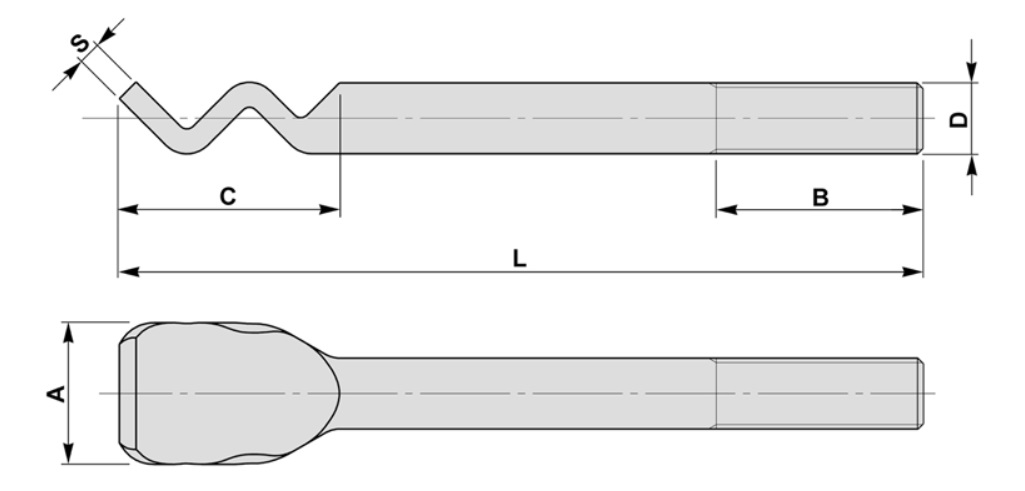

DIN 529 - Type D Masonry and Foundation Bolt Specifications

    Thread Size
d
    M8
    M10
    M12
    M16
    M20
    M24



    a
    Nominal Size
    16
    20
    24
    32
    40
    48


    max
    19
    23
    27
    35
    43
    51


    min
    13
    17
    21
    29
    37
    45


    c
    Nominal Size
    24
    30
    36
    48
    60
    72


    max
    29
    35
    41
    53
    65
    77


    min
    19
    25
    31
    43
    55
    67


    s
    Nominal Size
    3
    3.5
    4
    5
    6
    8


    max
    4.5
    5
    5.5
    6.5
    7.5
    9.5


    min
    1.5
    2
    2.5
    3.5
    4.5
    6.5


    b
    min=nominal size
    20
    25
    30
    40
    50
    60


    max
    22.5
    28
    33.5
    44
    55
    66


Thread Size d	M8	M10	M12	M16	M20	M24
a	Nominal Size	16	20	24	32	40	48
max	19	23	27	35	43	51
min	13	17	21	29	37	45
c	Nominal Size	24	30	36	48	60	72
max	29	35	41	53	65	77
min	19	25	31	43	55	67
s	Nominal Size	3	3.5	4	5	6	8
max	4.5	5	5.5	6.5	7.5	9.5
min	1.5	2	2.5	3.5	4.5	6.5
b	min=nominal size	20	25	30	40	50	60
max	22.5	28	33.5	44	55	66

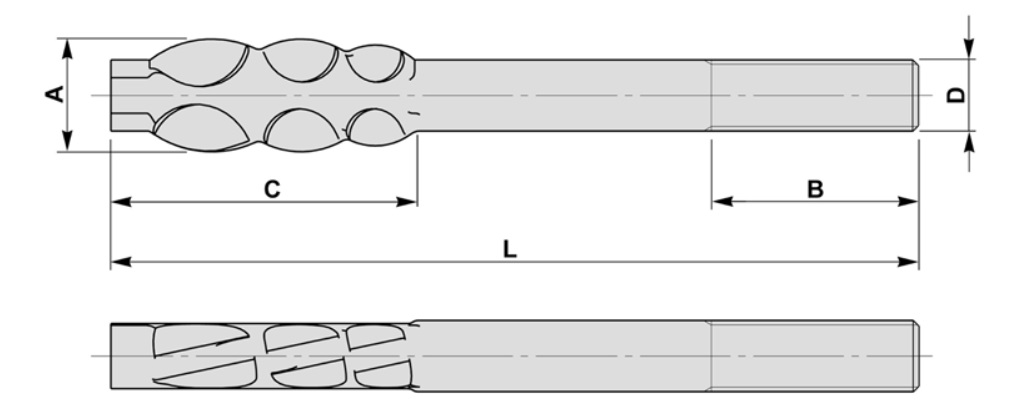

DIN 529 - Type E Masonry and Foundation Bolt Specifications

    Thread Size
     d
    M8
    M10
    M12
    M16
    M20
    M24
    M30
    M36
    M42
    M48



    a
    Nominal Size
    16
    20
    24
    32
    40
    48
    60
    72
    85
    98


    max
    19
    23
    27
    35
    43
    51
    63
    75
    88
    101


    min
    13
    17
    21
    29
    37
    45
    57
    69
    82
    95


    c
    Nominal Size
    45
    55
    70
    90
    100
    135
    150
    180
    260
    260


    max
    50
    60
    75
    95
    105
    140
    155
    185
    265
    265


    min
    40
    50
    65
    85
    95
    130
    145
    175
    255
    255


    b
    min=nominal size
    20
    25
    30
    40
    50
    60
    75
    90
    105
    120


    max
    22.5
    28
    33.5
    44
    55
    66
    82
    98
    114
    130


Thread Size d	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48
a	Nominal Size	16	20	24	32	40	48	60	72	85	98
max	19	23	27	35	43	51	63	75	88	101
min	13	17	21	29	37	45	57	69	82	95
c	Nominal Size	45	55	70	90	100	135	150	180	260	260
max	50	60	75	95	105	140	155	185	265	265
min	40	50	65	85	95	130	145	175	255	255
b	min=nominal size	20	25	30	40	50	60	75	90	105	120
max	22.5	28	33.5	44	55	66	82	98	114	130

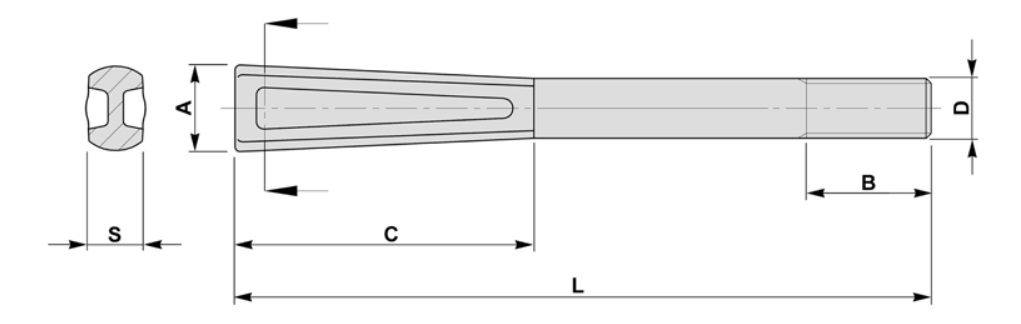

DIN 529 - Type F Masonry and Foundation Bolt Specifications

    Thread Size
d
    M8
    M10
    M12
    M16
    M20
    M24
    M30
    M36
    M42
    M48



    a
    Nominal Size
    　
    14
    16
    20
    25
    30
    35
    45
    55
    65
    75


    max
    　
    17
    19
    23
    28
    33
    38
    48
    58
    68
    78


    min
    　
    11
    13
    17
    22
    27
    32
    42
    52
    62
    72


    c
    Nominal Size
    　
    50
    50
    55
    85
    95
    120
    130
    190
    200
    220


    max
    　
    55
    55
    60
    90
    100
    125
    135
    195
    205
    225


    min
    　
    45
    45
    50
    80
    90
    115
    125
    185
    195
    215


    s
    6
    8
    10
    14
    18
    22
    26
    30
    36
    42


    b
    min=nominal size
    　
    20
    25
    30
    40
    50
    60
    75
    90
    105
    120


    max
    　
    22.5
    28
    33.5
    44
    55
    66
    82
    98
    114
    130


Thread Size d	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48
a	Nominal Size		14	16	20	25	30	35	45	55	65	75
max		17	19	23	28	33	38	48	58	68	78
min		11	13	17	22	27	32	42	52	62	72
c	Nominal Size		50	50	55	85	95	120	130	190	200	220
max		55	55	60	90	100	125	135	195	205	225
min		45	45	50	80	90	115	125	185	195	215
s	6	8	10	14	18	22	26	30	36	42
b	min=nominal size		20	25	30	40	50	60	75	90	105	120
max		22.5	28	33.5	44	55	66	82	98	114	130

DIN 529 - Type G Masonry and Foundation Bolt Specifications

    Thread Size
d
    M8
    M10
    M12
    M16
    M20
    M24
    M30
    M36
    M42
    M48
    M56
    M64
    M72×6



    a
    Nominal Size
    20
    25
    30
    40
    50
    60
    75
    90
    105
    120
    140
    16
    180


    max
    23
    28
    33
    43
    53
    63
    78
    93
    108
    123
    143
    19
    183


    min
    17
    22
    27
    37
    47
    57
    72
    87
    102
    117
    137
    13
    177


    c
    Nominal Size
    5
    6
    7
    10
    12
    14
    18
    22
    25
    29
    34
    38
    43


    max
    10
    11
    12
    15
    17
    19
    23
    27
    30
    34
    39
    43
    48


    min
    0
    1
    2
    5
    7
    9
    13
    17
    20
    24
    29
    33
    38


    b
    min=nominal size
    20
    25
    30
    40
    50
    60
    75
    90
    105
    120
    140
    160
    180


    max
    22.5
    28
    33.5
    44
    55
    66
    82
    98
    114
    130
    151
    172
    192


Thread Size d	M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72×6
a	Nominal Size	20	25	30	40	50	60	75	90	105	120	140	16	180
max	23	28	33	43	53	63	78	93	108	123	143	19	183
min	17	22	27	37	47	57	72	87	102	117	137	13	177
c	Nominal Size	5	6	7	10	12	14	18	22	25	29	34	38	43
max	10	11	12	15	17	19	23	27	30	34	39	43	48
min	0	1	2	5	7	9	13	17	20	24	29	33	38
b	min=nominal size	20	25	30	40	50	60	75	90	105	120	140	160	180
max	22.5	28	33.5	44	55	66	82	98	114	130	151	172	192
