Product Introduction
Pronged Tee Nuts, also known as Three-Prong T-Nuts, Pronged T-Nuts, 4 Prong Tee Nuts, etc. It's available in carbon steel and stainless steel. Its surface treatment methods include blue and white zinc plating, color zinc plating, etc.
It is widely used in the furniture industry, such as the manufacture of sofas and office chairs. The four claws of Pronged Tee Nuts are vertically stiff and hardened. As a kind of nut, Pronged Tee Nuts, one of its quality standards is that the inner thread is relatively smooth.
It is widely used in the furniture industry, such as the manufacture of sofas and office chairs. The four claws of Pronged Tee Nuts are vertically stiff and hardened. As a kind of nut, Pronged Tee Nuts, one of its quality standards is that the inner thread is relatively smooth.
[njwa_button id="3060"]
Product Details
SIZE: M4-M10
MATEAIL: Carbon Steel, Stainless Steel
STANDARD: DIN1624
SURFACE TREATMENT: ZP, HDG, BLACK, Dacromet
CUSTOMIZED SUPPORT: YES

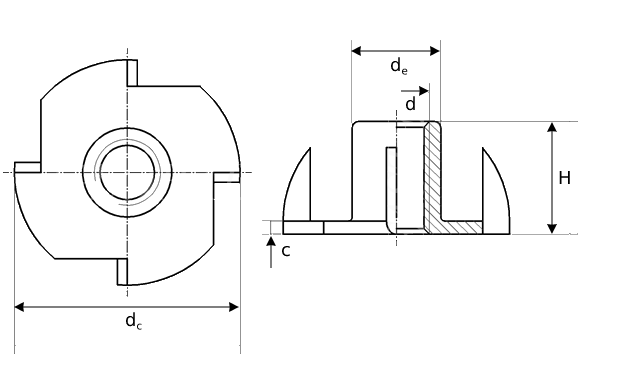

DIN1624 Pronged Tee Nuts Specifications
| Thread Size d | M4 | M4 | M5 | M6 | M6 | M8 | M8 | M10 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| P | pitch | 0.7 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.25 | 1.5 | |
| de | 5.6 | 5.6 | 6.5 | 7.7 | 7.7 | 10 | 10 | 12 | ||
| H | 6.95 | 8.95 | 9.15 | 10.3 | 13.3 | 12.75 | 16.75 | 14.5 | ||
| dc | 15 | 15 | 17 | 19 | 19 | 22 | 22 | 25.5 | ||
| c | 0.95 | 0.95 | 1.15 | 1.3 | 1.3 | 1.75 | 1.75 | 1.5 | ||
