Split Pins China Supplier High Quality Good Price DIN94

Product Introduction

Split Pins are also known as Cotter Pins. There are many kinds of Pins, such as Safety Lock with Circle Part Pins, Safety Lock with Turning Up Pins, Lock pins, Snap Retainer Pins, Clip Ring Pins.

It's a type of mechanical part. Split Pins can play the role of anti-loosening. After the nut is tightened, insert it into the hole between the nut and the bolt tail, and split the Split Pins tail, so as to achieve the anti-loosening effect.

It have GB, DIN, JIS and other standards, such as DIN94, DIN EN ISO1234, BS1574, ANSI/ASME B 18.8.1, JIS B 1251, NF E 25-774, etc.

[njwa_button id="3060"]

Product Details

SIZE: M0.6-M20

MATEAIL: Carbon Steel, Stainless Steel

STANDARD: DIN94, DIN EN ISO1234, BS1574, ANSI/ASME B 18.8.1, JIS B 1251, NF E 25-774

SURFACE TREATMENT: ZP, HDG, BLACK, Dacromet

CUSTOMIZED SUPPORT: YES

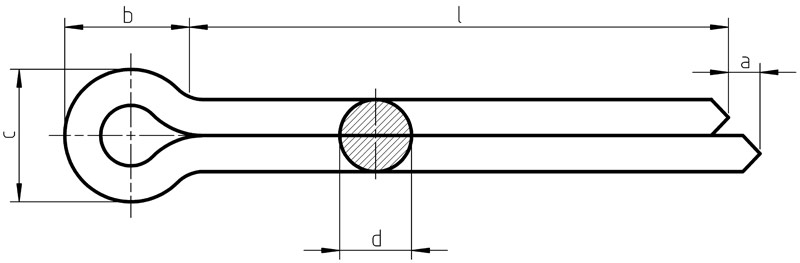

DIN94 Split Pins Specifications

    Nominal Diameter
d
    0.6
    0.8
    1
    1.2
    1.6
    2
    2.5
    3.2



    d
    max
    0.5
    0.7
    0.9
    1
    1.4
    1.8
    2.3
    2.9


    min
    0.4
    0.6
    0.8
    0.9
    1.3
    1.7
    2.1
    2.7


    α
    max
    1.6
    1.6
    1.6
    2.5
    2.5
    2.5
    2.5
    3.2


    min
    0.8
    0.8
    0.8
    1.25
    1.25
    1.25
    1.25
    1.6


    b
    ≈
    2
    2.4
    3
    3
    3.2
    4
    5
    6.4


    c
    max
    1
    1.4
    1.8
    2
    2.8
    3.6
    4.6
    5.8


    min
    0.9
    1.2
    1.6
    1.7
    2.4
    3.2
    4
    5.1


    　


    Nominal Diameter
     d
    4
    5
    6.3
    8
    10
    13
    16
    20


    d
    max
    3.7
    4.6
    5.9
    7.5
    9.5
    12.4
    15.4
    19.3


    min
    3.5
    4.4
    5.7
    7.3
    9.3
    12.1
    15.1
    19


    α
    max
    4
    4
    4
    4
    6.3
    6.3
    6.3
    6.3


    min
    2
    2
    2
    2
    3.2
    3.2
    3.2
    3.2


    b
    ≈
    8
    10
    12.6
    16
    20
    26
    32
    40


    c
    max
    7.4
    9.2
    11.8
    15
    19
    24.8
    30.8
    38.6


    min
    6.5
    8
    10.3
    13.1
    16.6
    21.7
    27
    33.8


Nominal Diameter d	0.6	0.8	1	1.2	1.6	2	2.5	3.2
d	max	0.5	0.7	0.9	1	1.4	1.8	2.3	2.9
min	0.4	0.6	0.8	0.9	1.3	1.7	2.1	2.7
α	max	1.6	1.6	1.6	2.5	2.5	2.5	2.5	3.2
min	0.8	0.8	0.8	1.25	1.25	1.25	1.25	1.6
b	≈	2	2.4	3	3	3.2	4	5	6.4
c	max	1	1.4	1.8	2	2.8	3.6	4.6	5.8
min	0.9	1.2	1.6	1.7	2.4	3.2	4	5.1

Nominal Diameter d	4	5	6.3	8	10	13	16	20
d	max	3.7	4.6	5.9	7.5	9.5	12.4	15.4	19.3
min	3.5	4.4	5.7	7.3	9.3	12.1	15.1	19
α	max	4	4	4	4	6.3	6.3	6.3	6.3
min	2	2	2	2	3.2	3.2	3.2	3.2
b	≈	8	10	12.6	16	20	26	32	40
c	max	7.4	9.2	11.8	15	19	24.8	30.8	38.6
min	6.5	8	10.3	13.1	16.6	21.7	27	33.8
